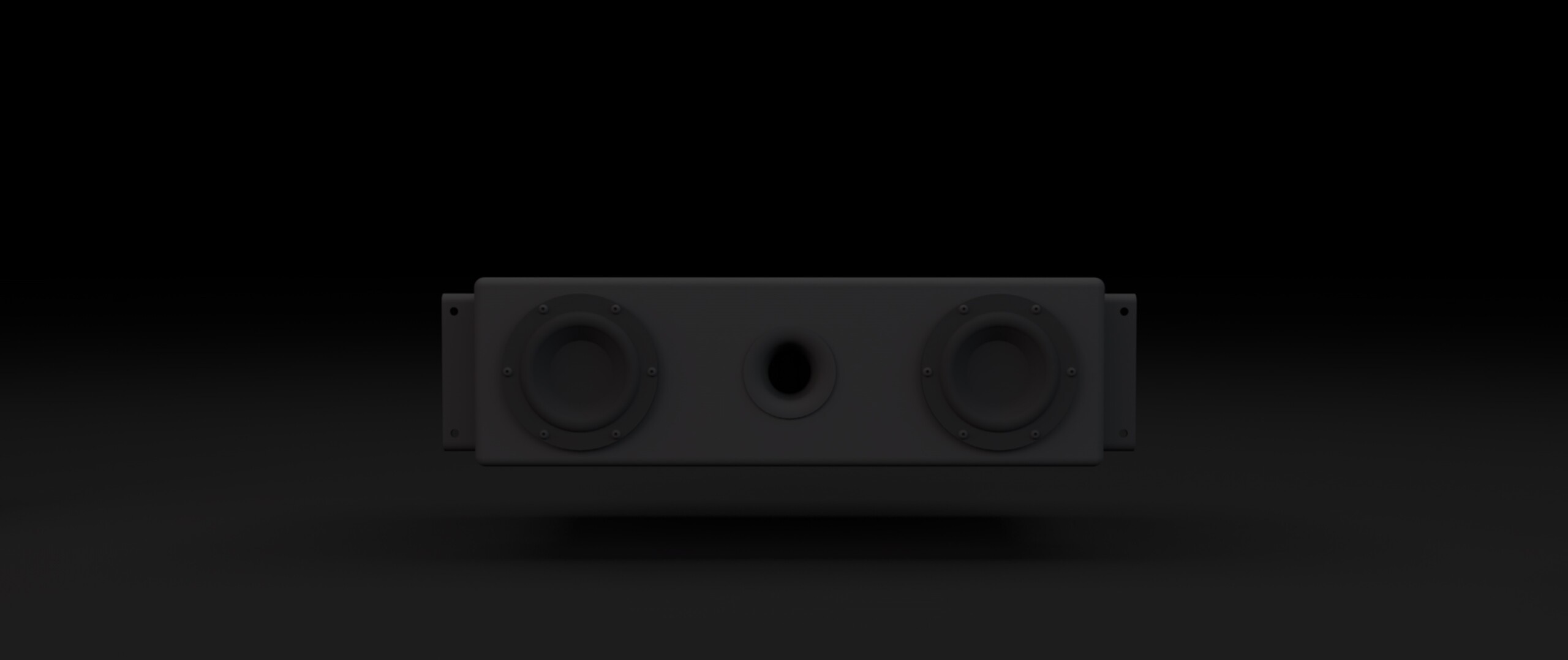

RC Subwoofer
C216 SERIES
Speaker for integration in Richter Universal Ceiling System (UCS) for inverted trough
Features
- Easy installation in the trough
- Can be installed and removed without opening the ceiling
- Can also be used as a stand-alone device
TECHNICAL DETAILS
Attribute | Value |
---|---|
Impedance | 16 Ohms nominal |
Sensitivity (1 W/1 m) | 84 dB |
Power Handling | 70 W cont. / 180 W peak |
Max. calculated SPL | 103 dB cont. / 107 dB peak |
Frequency range (-3 dB) | 45 -130 Hz |
Ingress Protection Rating | IP 20 |
Housing | Aluminum (non combustible) |
MECHANICAL PROPERTIES
C216.1
![C216_i_Measurements RC Subwoofer](https://www.richter-lt.de/wp-content/uploads/2023/07/xC216_i_Measurements.jpg.pagespeed.ic.XNvuETUkKw.jpg)

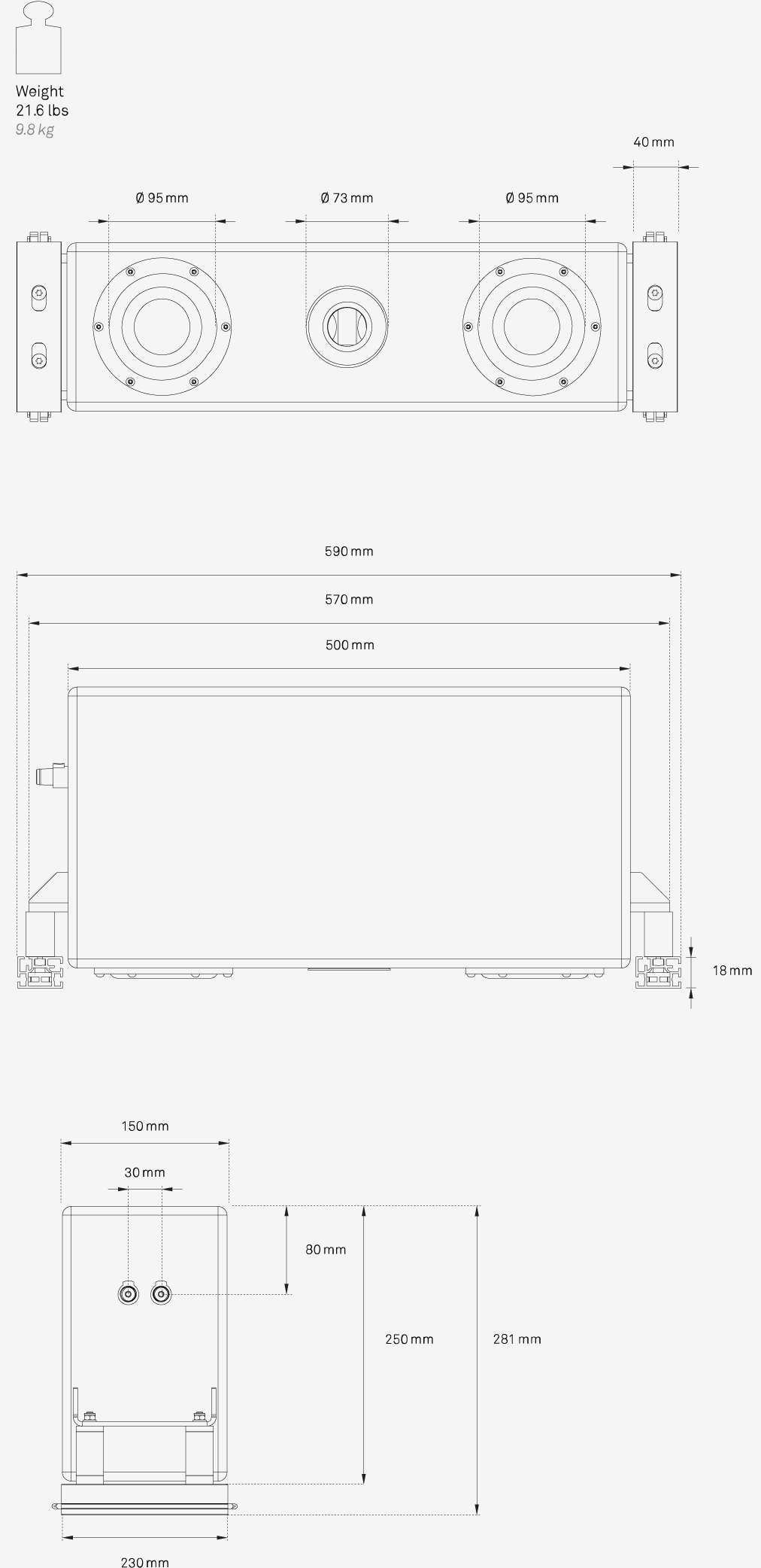

C216.2
![C216_ii_Measurements RC Subwoofer](https://www.richter-lt.de/wp-content/uploads/2023/07/xC216_ii_Measurements.jpg.pagespeed.ic.gF0S1lD-T8.jpg)
C216.3
![C216_iii_Measurements RC Subwoofer](https://www.richter-lt.de/wp-content/uploads/2023/07/xC216_iii_Measurements.jpg.pagespeed.ic.sqHQKUVzHa.jpg)
