RC Speaker
C215 SERIES
Speaker for integration in Richter Universal Ceiling System (UCS) for inverted trough
Features
- Easy installation in the trough
- Can be installed and removed without opening the ceiling
TECHNICAL DETAILS
Attribute | Value |
---|---|
Impedance | 16 Ohms nominal |
Sensitivity (1 W/1 m) | 84 dB |
Power Handling | 45 W cont. / 120 W peak |
Max. calculated SPL | 101 dB cont. / 105 dB peak |
Frequency range (-3 dB) | 150 -23000 Hz |
Ingress Protection Rating | IP 20 |
Housing | Aluminum (non combustible) |
MECHANICAL PROPERTIES
C215.1 RC SPEAKER WITH MOUNTING KIT I
![C215_i_Measurements RC Speaker](https://www.richter-lt.de/wp-content/uploads/2023/06/xC215_i_Measurements.jpg.pagespeed.ic.Iiw751Xx2c.jpg)

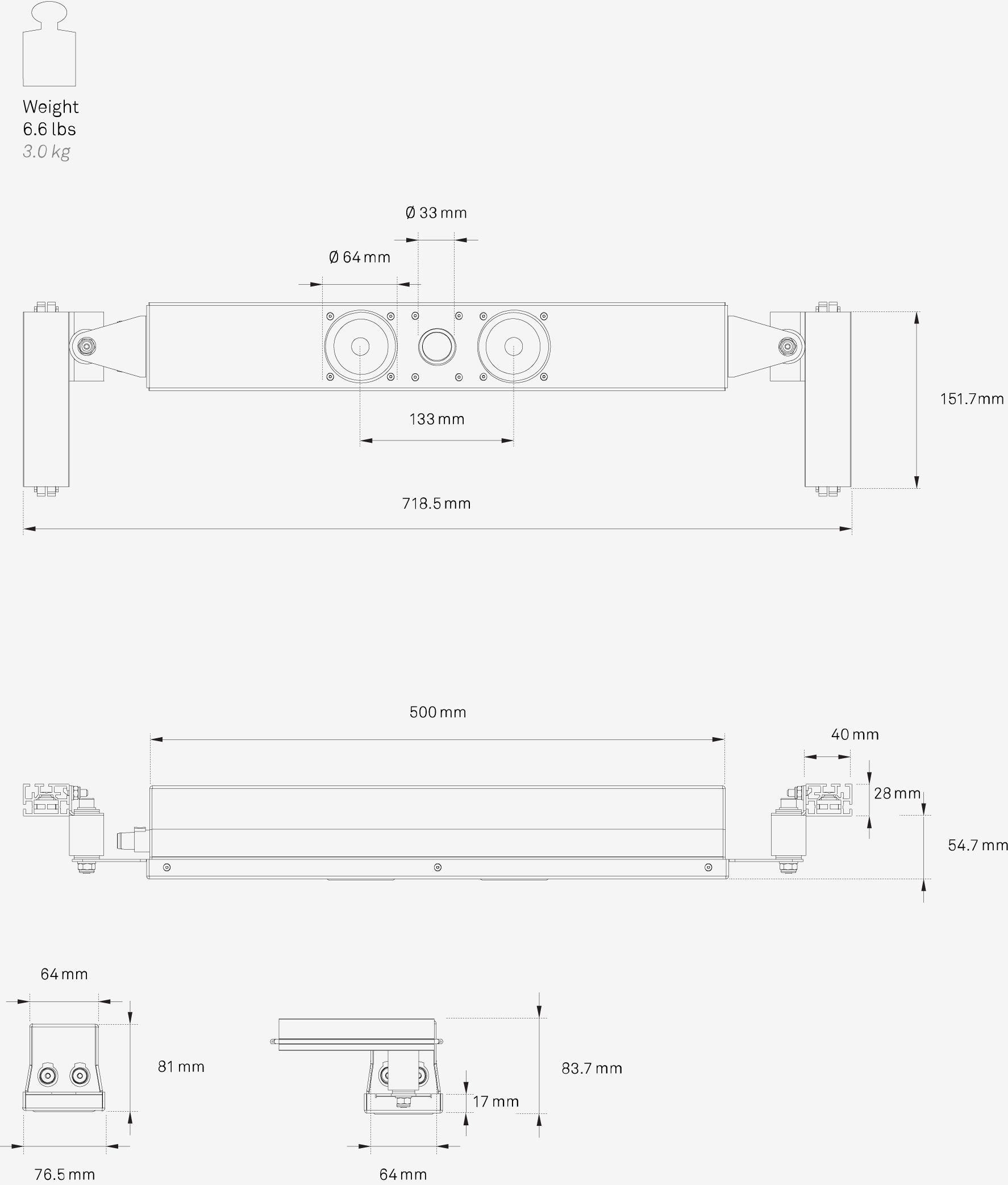

C215.2 RC SPEAKER WITH MOUNTING KIT II
![C215_ii_Measurements RC Speaker](https://www.richter-lt.de/wp-content/uploads/2023/06/xC215_ii_Measurements.jpg.pagespeed.ic.lhHh84Erc_.jpg)
C215.3 RC SPEAKER WITH MOUNTING KIT III
![C215_iii_Measurements RC Speaker](https://www.richter-lt.de/wp-content/uploads/2023/06/xC215_iii_Measurements.jpg.pagespeed.ic.rUSn_jYugQ.jpg)
