RC Speaker Short

C505 SERIES

Speaker for integration in Richter Universal Ceiling System (UCS) for inverted trough

Features

  • Flexible installation system with multiple connecting points
  • Can be installed and removed without opening the ceiling

TECHNICAL DETAILS

Attribute Value
Impedance 16 Ohms nominal
Sensitivity (1 W/1 m) 84 dB
Power Handling 45 W cont. / 120 W peak
Max. calculated SPL 101 dB cont. / 105 dB peak
Frequency range (-3 dB) 150 -23000 Hz
Ingress Protection Rating IP 20
Housing Aluminum (non combustible)

MECHANICAL PROPERTIES

RC Speaker Short

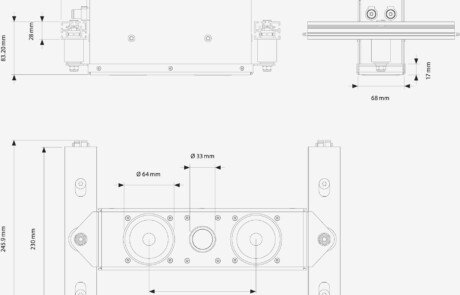

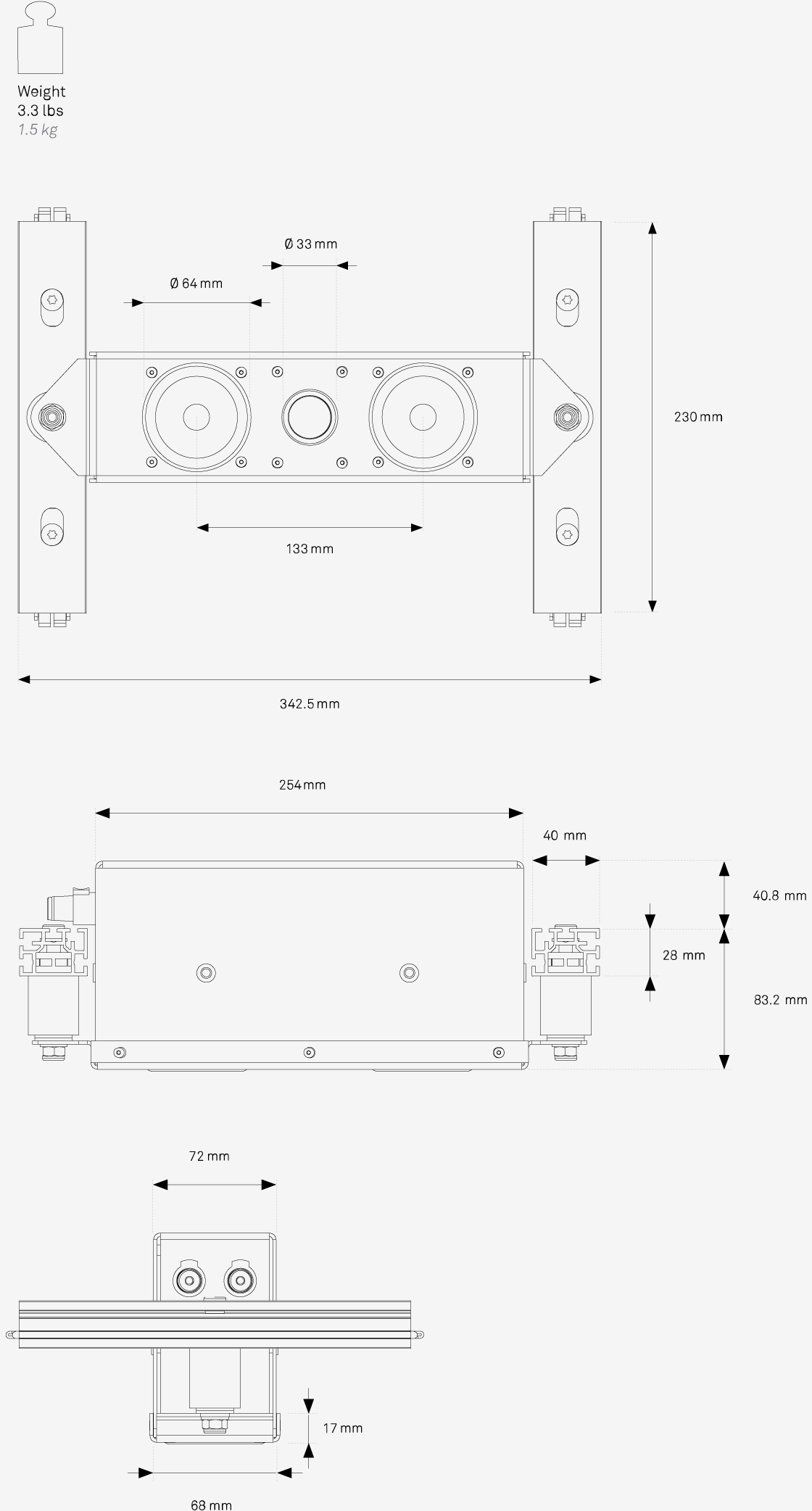

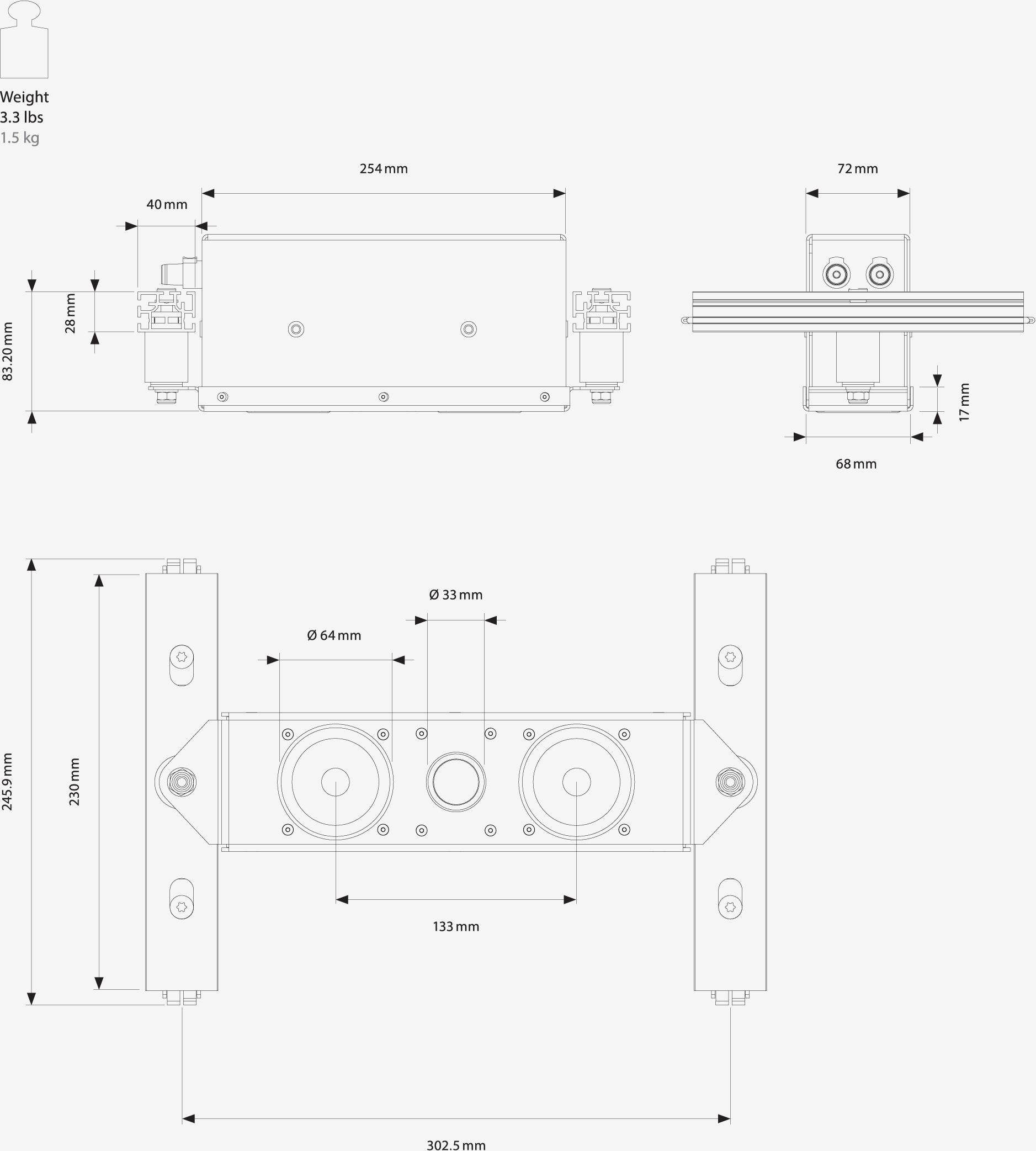

C505.1 RC SPEAKER WITH MOUNTING KIT I

RC Speaker Short

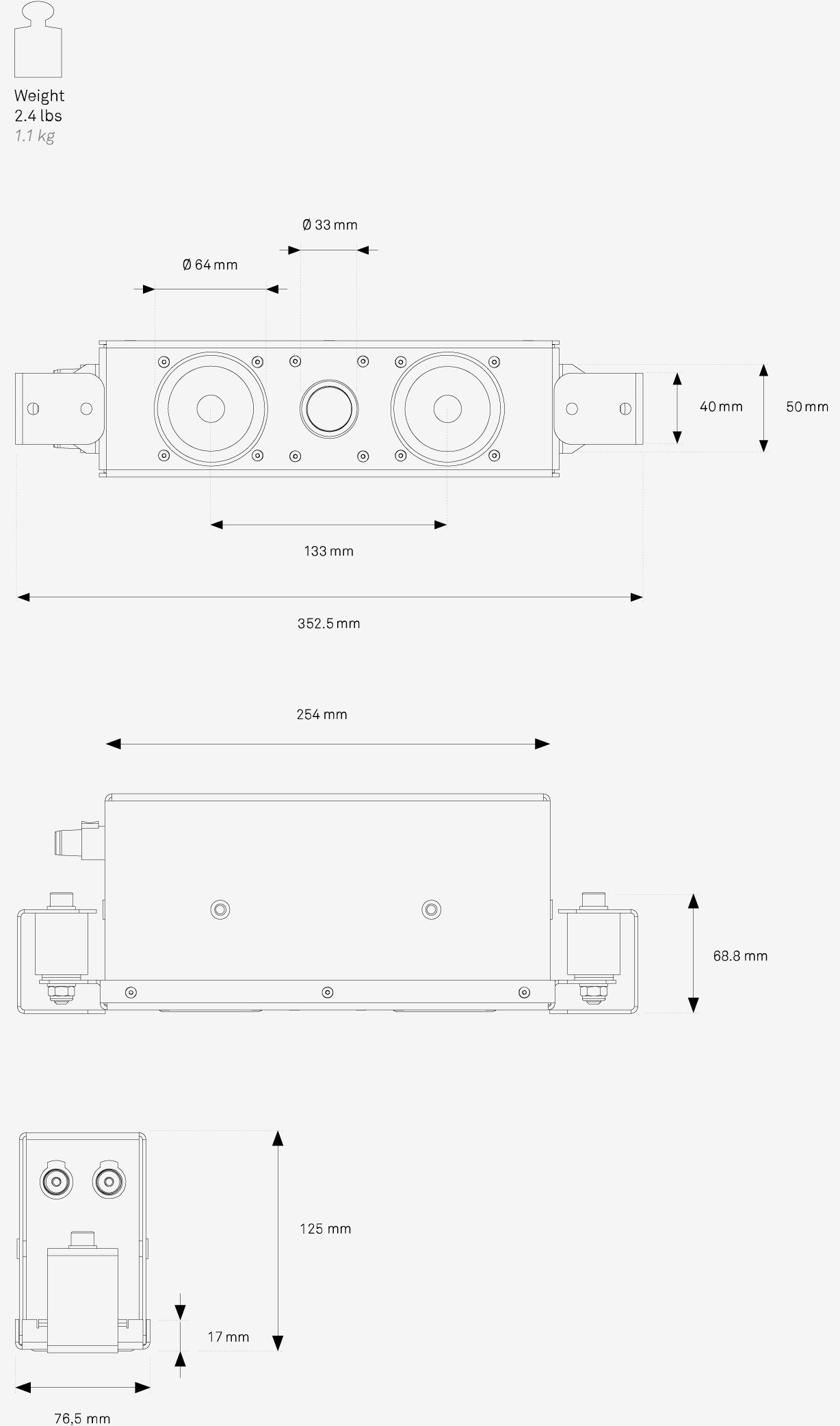

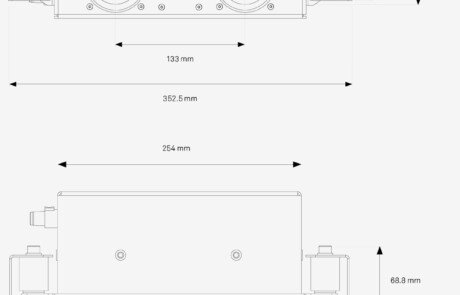

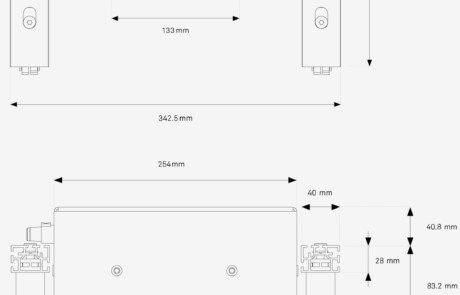

C505.3 RC SPEAKER WITH MOUNTING KIT III

RC Speaker Short

Installation Options

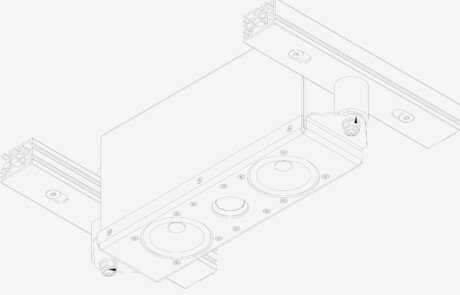

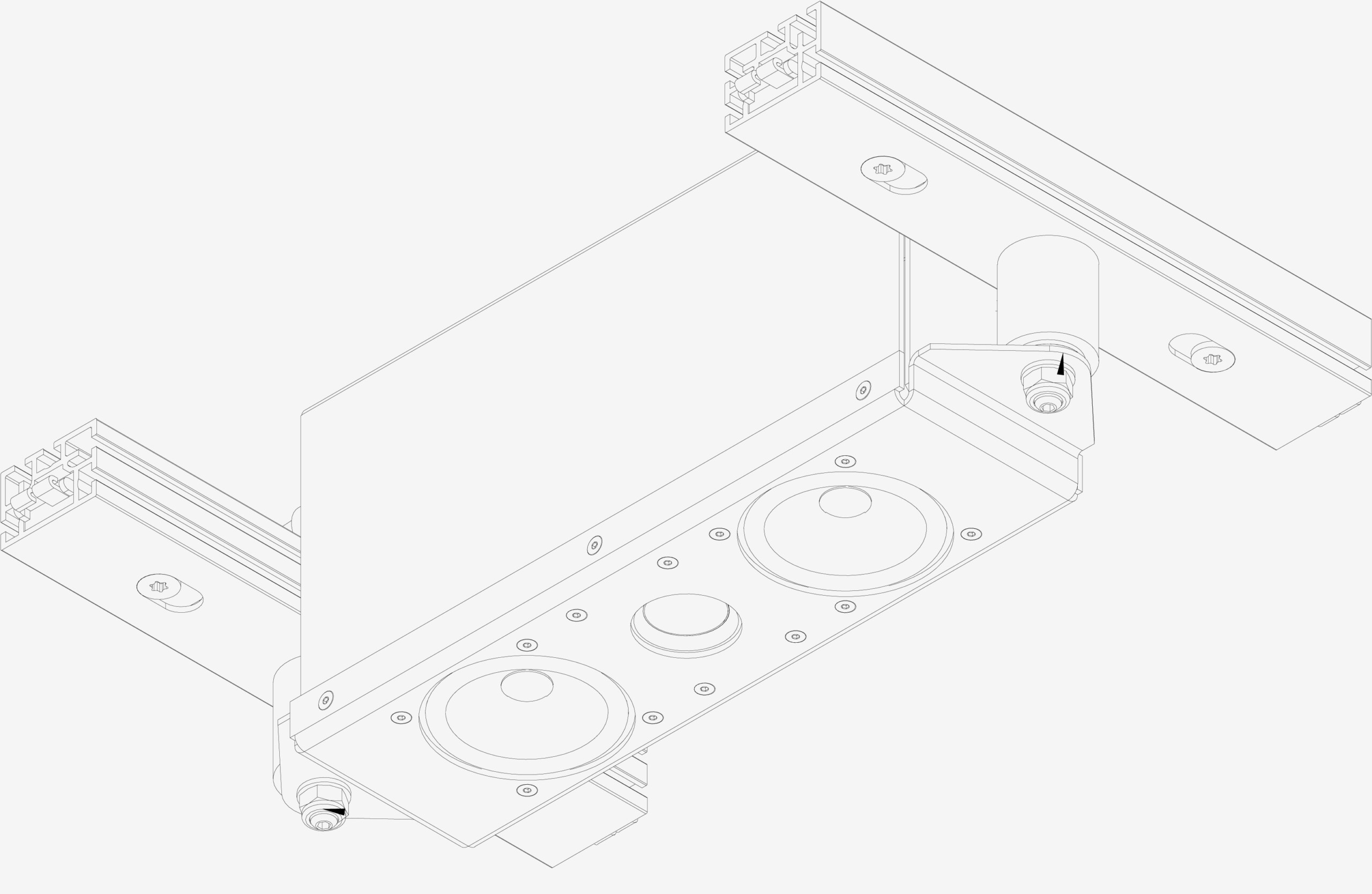

Option A -UCS

RC Speaker Short

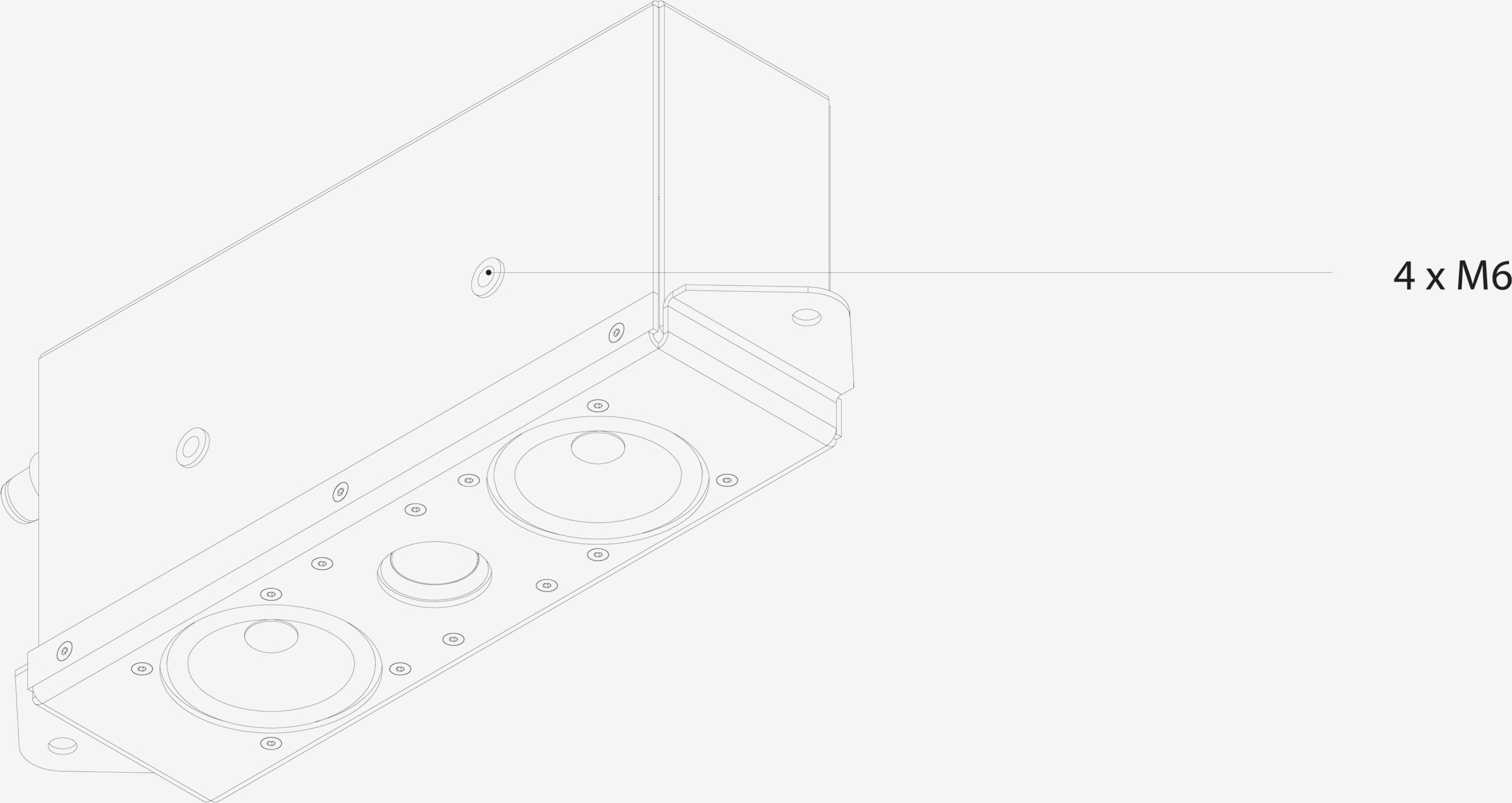

Option B

RC Speaker Short

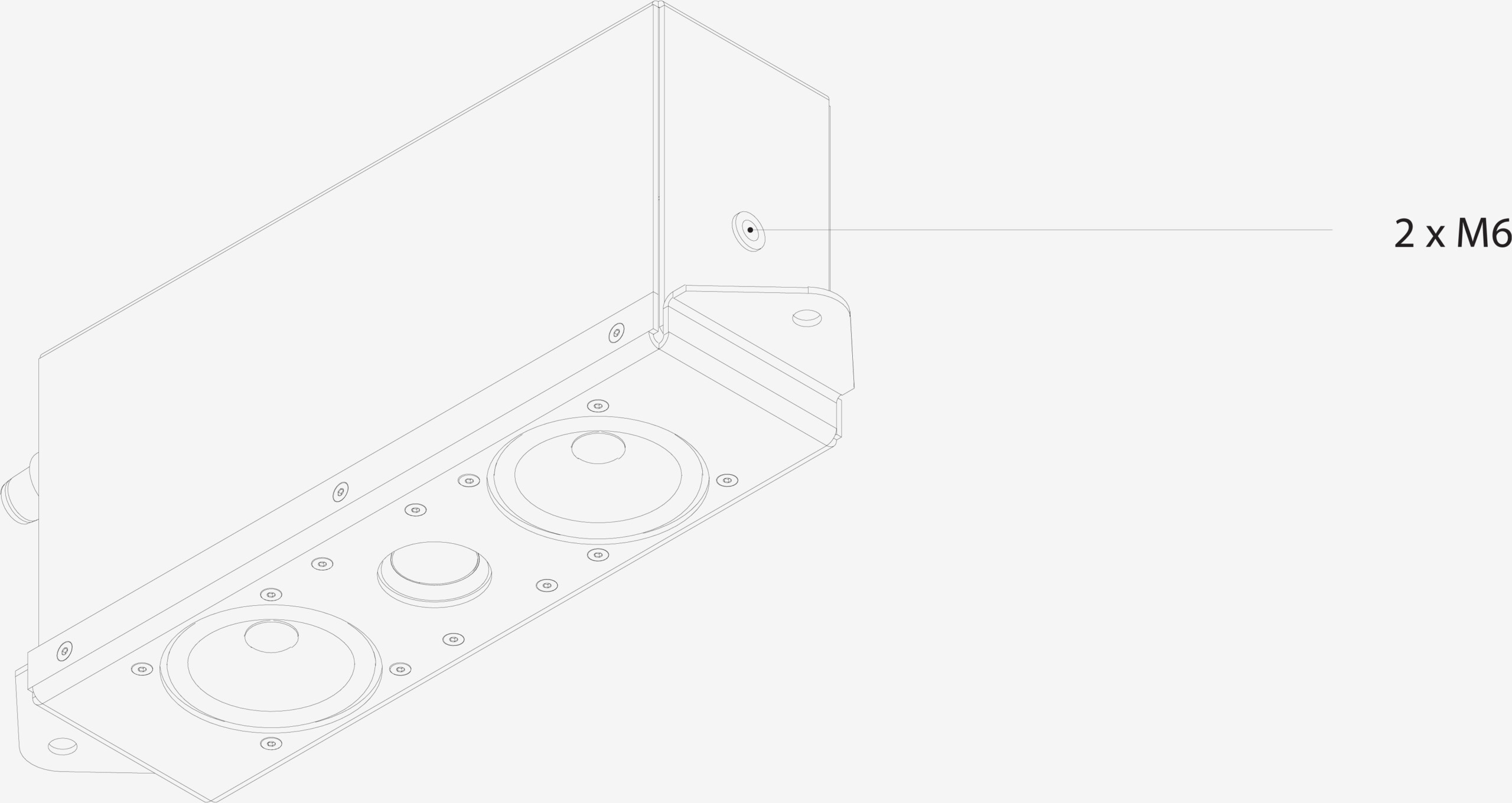

Option C

RC Speaker Short
